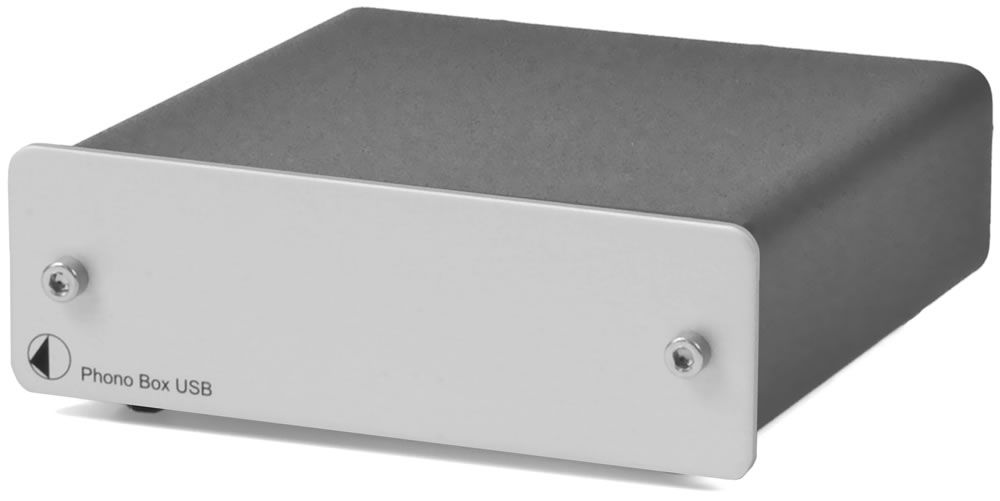

Pro-Ject Phono Box USB Phono Előerősítő
Lemezjátszó előerősítő (RIAA korrektor) MM/MC hangszedőhöz USB kimenettel számítógépre történő archiváláshoz.. Külső tápegységgel rendelkezik.
Műszaki adatok:
- Input impedance, MM: 47kohms/120pF
- Input impedance, MC: 100ohms/120pF
- Gain, MM: 40dB
- Output voltage typically: 300mV/1kHz at 3mV/1kHz (MM input)
- Gain, MC: 60dB
- Output voltage typically: 300mV/1kHz at 0,3mV/1kHz (MC input)
- Max. output: 9,5V (1kHz)
- Noise floor, MM: 86dB (94dB – A weighted)
- Noise floor, MC: 68dB (75dB – A weighted)
- THD, MM: 0,01%
- THD, MC: 0,05%
- A/D converter: 16-Bit Delta Sigma
- Sampling rates: 32, 44,1 and 48kHz
- USB output: digital serial data protocol USB 1.1
- Operating systems: Windows® and MacOS®
- RIAA-equalisation curve accuracy: 20Hz – 20kHz / max. 0,5dB
- Outboard power supply: 18V/200mA DC,
- Standby power consumption: < 1 watt
- Dimensions W x H x D: 103 x 36 x 103 (109 mm with sockets)
- Weight: 540g
- Szín: Ezüst, Fekete
