SONUS FABER Stradivari 25th Anniversary Hangfal – 17éves, 2008ból

Palladio 25/19th

Sonus Faber Palladio Limited Edition Stradivari Homage



System: 3 way floorstanding vented box loudspeaker.



– Cabinet: elliptical shape design, multilayer, constrained-mode damping, enclosure formed using hand selected wood layers, quality graded and oriented for carefully optimized resonances control. Sub-structural ribs are strategically placed for absolute rejection of spurious vibrations.



– Tweeter: 25 mm ultra dynamic linearity neodymium ring radiator driver, with dual toroidal wave-guide. Natural wood acoustic labyrinth rear chamber, with mechanical anti-resonator synergycally designed and integrated “acoustic ambient”.



– Midrange: 150 mm ultra dynamic linearity driver. Ccaw/kapton “eddy current free” voice coil. Dynamically linear magnetic field motor incorporating kellog and faraday rings. All moving elements optimally ventilated for “resonance free” response. Designed synergistically with its vented “acoustic chamber”.



– Woofers: 260 mm lightweight aluminium/magnesium alloy cone driver in an acoustically amorphous vented chamber. A dual faraday copper ring long-throw motor system with a 2” “eddy current free” voice coil is implemented for an ultra dynamic performance and linearity. Special coaxial anti-compressors are used, designed to remove cavity resonance and distortions.



– Cross-over: special multi slope structure with optimized phase/amplitude response. The impedance at low frequencies is controlled for a clear amplifier friendly performance. A unique structured precious metal alloy conductors used, totally coherent on the entire signal path. Cross-over points 300 hz – 4.000 hz.



Specifications

– Frequency response: 22 hz – 40.000 hz, tuning ports included.

– Sensitivity: 92 db spl (2,83 v/1m).

– Nominal impedance: 4 ohm.

– Power handling: 30w – 300w, without clipping.

– Finish: Palladio

– Dimensions: 1370 x 655 x 500 mm (hxwxd).

– Weight: 151,8 kg per pair – net weight / 198,6 kg per pair-shipping weight.





Sonus faber:

Andrea Palladio limited edition : due to the 500 Anniversary of the Andrea Palladio’s birth (he’s a famous architect of 16th century), we dedicate a limited edition of our Homage line.

We will produce:
25 pairs of Stradivari
50 pairs of Amati
100 pairs of Guarneri

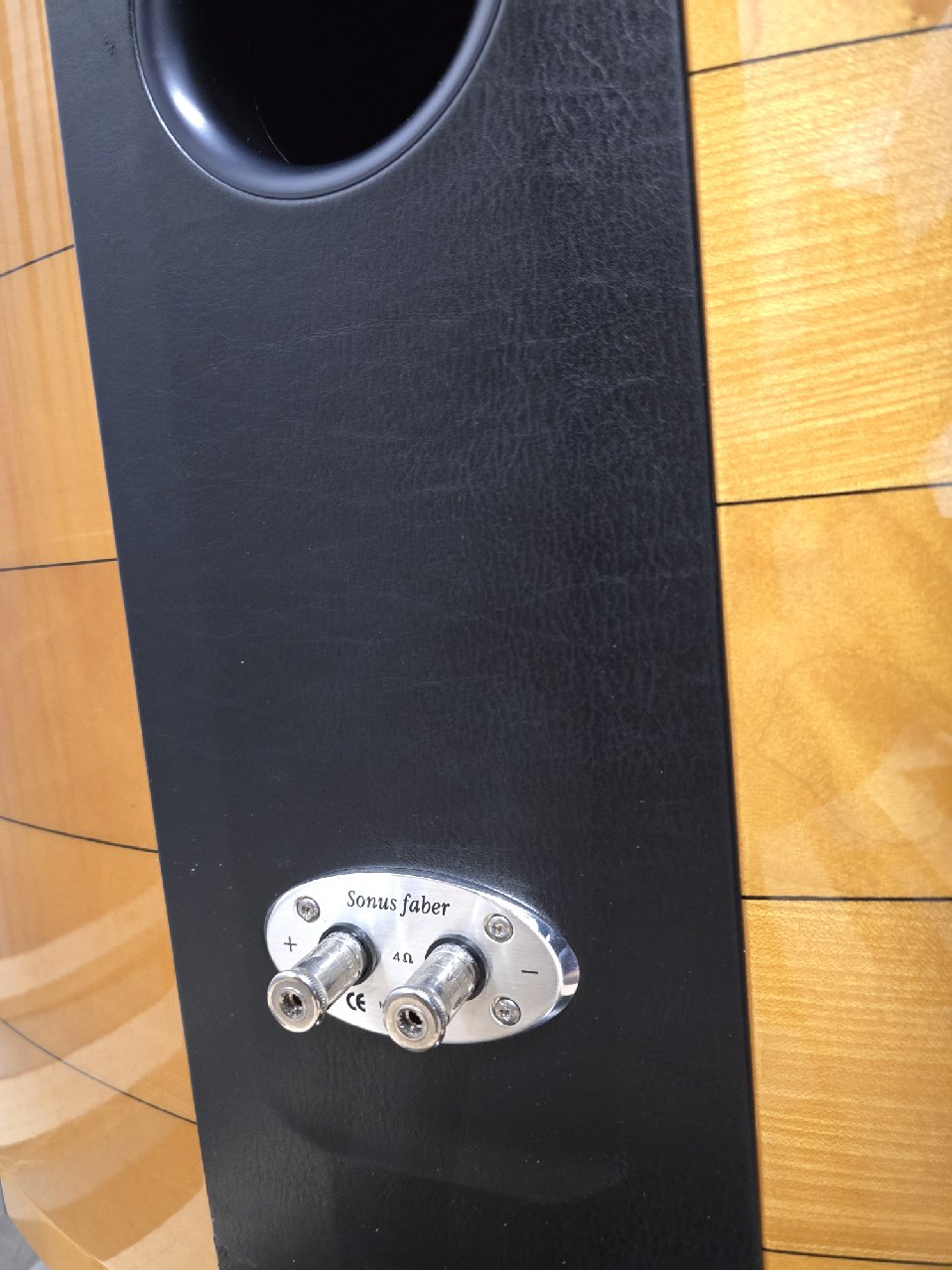

The finish is in natural maple lacquered with metal parts (binding posts and labels) in silver/palladium rhodium and not in gold as in the standard version. The face plug of the bass for Amati and Stradivari is made in Vicenza Stone. The base stone for the stand Guarneri in Vicenza stone.
