PS Audio Power Plant 15 (second hand)

psaudio-powerplant-15

Műszaki adatok

33kg!

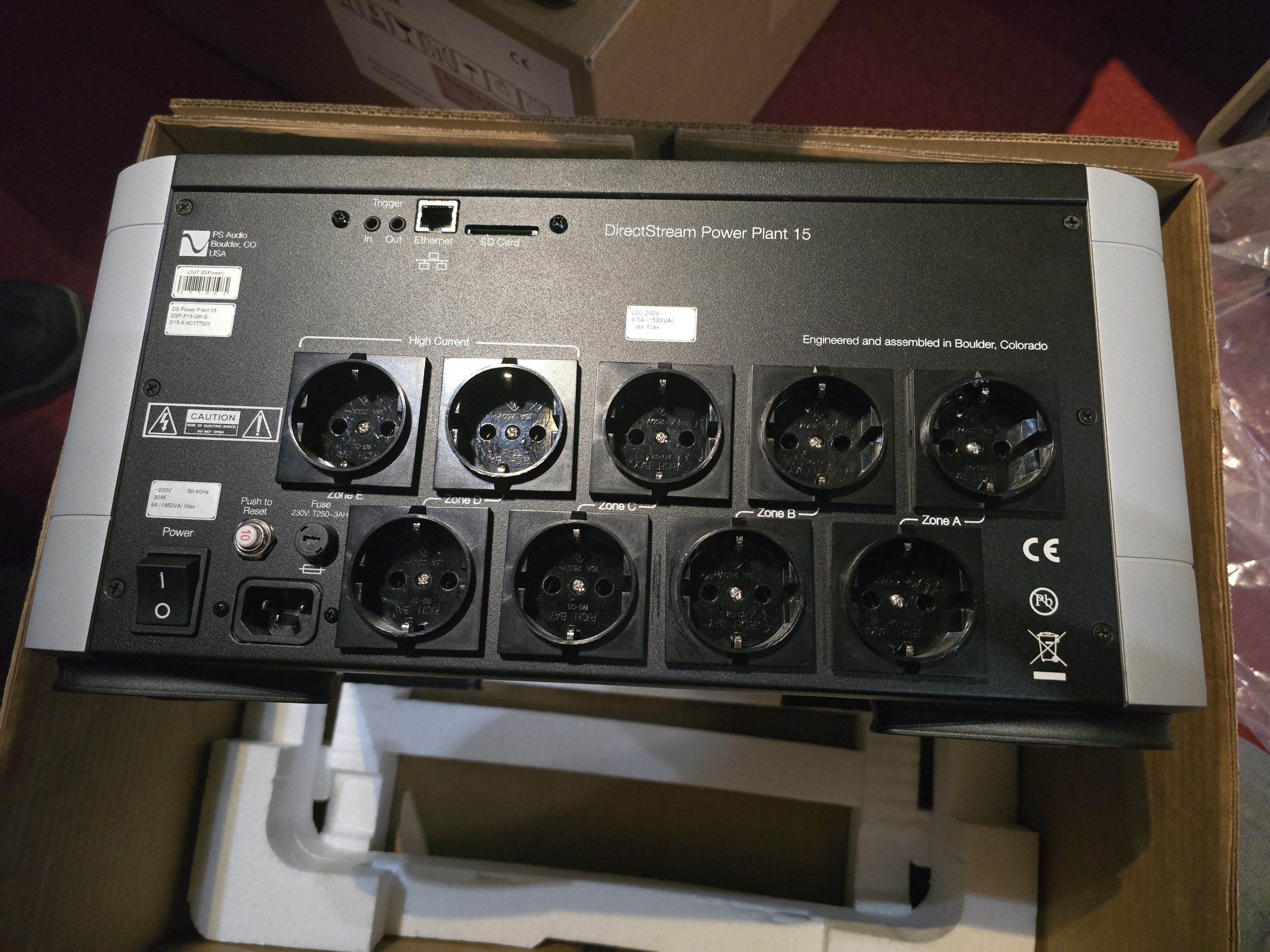

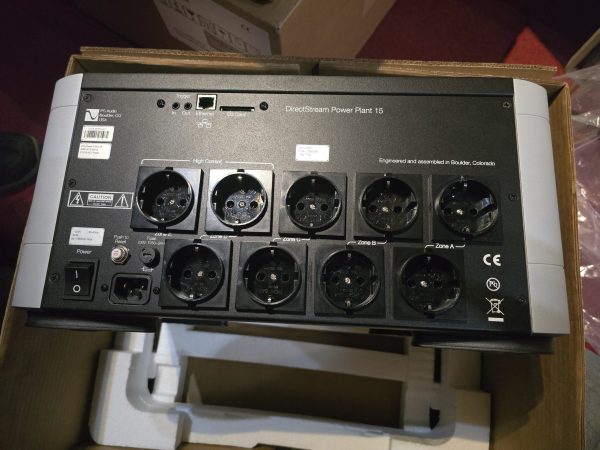

21,25cm magas! Hátoldalon 9 kimenet és 16A IEC bemenet

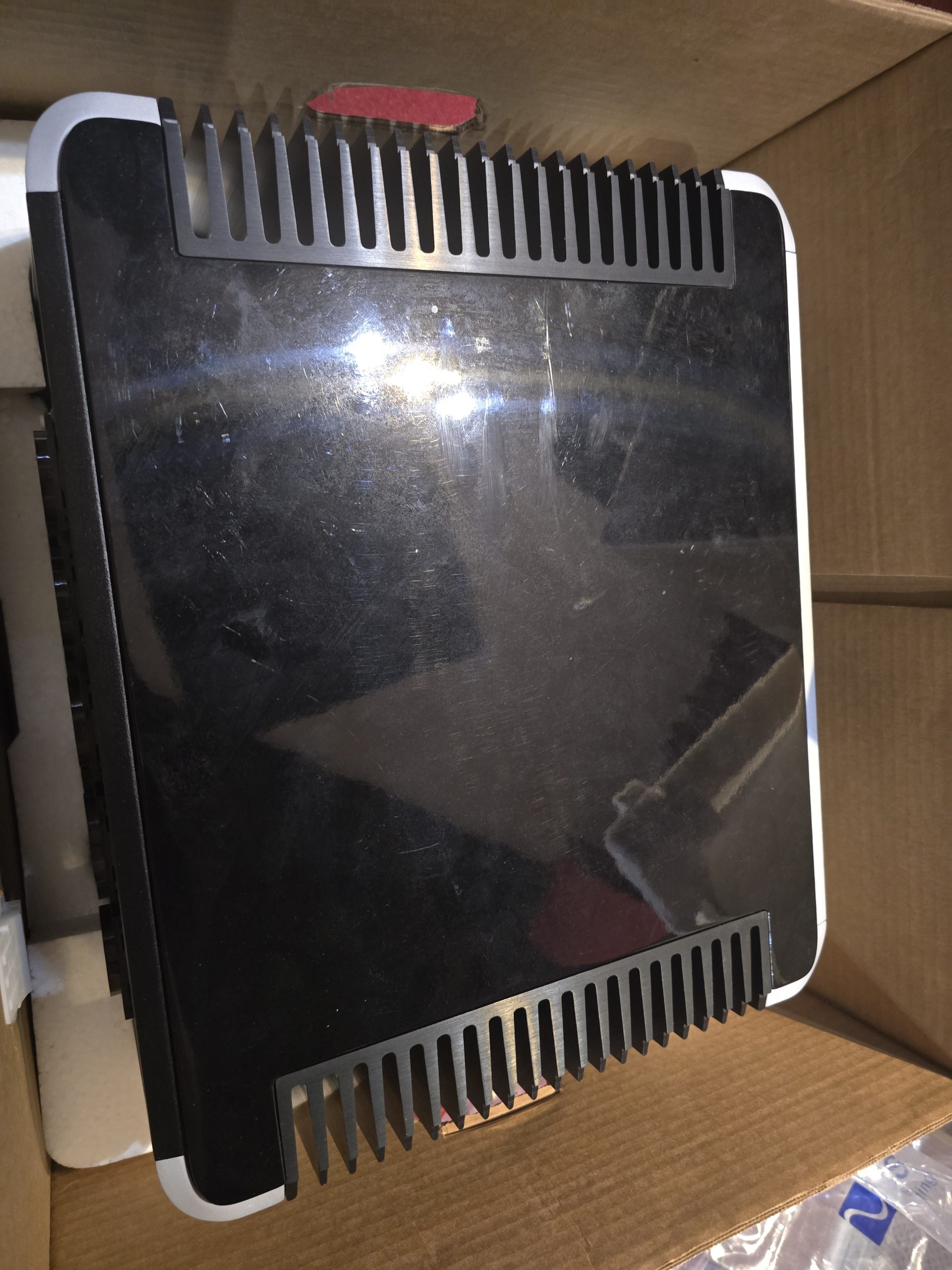

felső fedlap enyhén karcos
használt készülék első tulajdonostól, dobozával.

Kategóriák:

Kifutott termékek

Címkék:

IsoTek Hálózati Elosztó

PS Audio Direct Stream Power Plant 15 (second hand)

Purify, protect, regulate, and rebuild unrestricted new power from old with the P15, our second most powerful AC regenerator.

The DirectStream P15 Power Plant is the gold standard for safety, reliability, and high-performance AC power regeneration. The P15 improves micro and macro dynamics, audio purity, instrumental separation, soundstage width and depth, and lowers background noise for any connected equipment. From medium to large power amplifiers to the smallest pieces of source equipment, the P15 will work magic on your system’s performance. Don’t starve your music or risk damaging your equipment. A P15 gives you greatly improved performance and safety from just plugging into the wall socket and far better dynamics, bass and a much bigger, open soundstage than any power conditioner on the market.

CIKK1

CIKK2

Design

The P15 features an ultra-low impedance analog power amplifier, FPGA based sine wave generator based on pure, clean, analog DSD (PCM), 10 outlets (US version) across 5 separate regenerated zones, and 1/4″ thick copper busbars that deliver regenerated power to each receptacle. Through regeneration, the P15 creates a completely new AC waveform that adds missing energy back onto the power line to correct for serious issues

Application

With a maximum output of 1500 watts, the P15 regenerates steady, regulated, pure AC that is unaffected by your equipment’s demands for power. Powering your system from the outlets of the P15 will reveal new voices, new harmonics, and a renewed sense of musicality. As the gold standard for safety, reliability, and high-performace AC power regeneration, the P15 will ensure you receive the same great performance every time you listen and provide a firm foundation for your system.

Specifications

Environment Specification	US/JP	Europe/Asia
Location	Indoor use only	Indoor use only
Duty Cycle	Suitable for continuous operation	Suitable for continuous operation
Moisture Sensitivity	Not sealed against moisture	Not sealed against moisture
Operating Humidity	<80%rh	<80%rh
Storage Temperature	-40C to +40C	-40C to +40C
Operating Temperature	0C to 40C	0C to 40C
Max Operating Altitude	12,000’ (3500m)	12,000’ (3500m)
Electrical Supply Nominal Rating	120V 15A 60Hz US 100V 15A 50/60 Hz JP	230V 10A 50/60Hz
Instrument Specification
Unit Dimensions	17” W x 14” D x 8.5” H (43cm W x 36cm D x 21.5 cm H)	17” W x 14” D x 8.5” H (43cm W x 36cm D x 21.5 cm H)
Unit Weight	73 lbs ( 33kg)	73 lbs ( 33kg)
Shipping Dimensions	23” x 20.5” x 13.5” ( 58cm x 52cm x 34cm)	23” x 20.5” x 13.5” ( 58cm x 52cm x 34cm)
Shipping Weight	82 lbs (38kg)	82 lbs (38kg)
Nominal Input Voltage	95 – 145 VAC	200 –285VAC
Maximum Continuous Load	1200VA	1500VA
Maximum Peak Load	3600VA	3600VA
Voltage Regulation	1V	1V
Output Distortion (Resistive Load)	<0.5% 0.1% typical	<0.9% 0.2% typical
Output Distortion (Reactive Load)	<0.5% 0.1% typical	<0.9% 0.2% typical
Output Impedance	<0.008 ohm	<0.008 ohm
Noise Reduction	100kHz – 2MHz >80dB	100kHz – 2MHz >80dB
Efficiency @1200 VA	>85%	>85%
Standby Power Consumption
Input Frequency	45 – 65 Hz	45 – 65 Hz
Under Voltage Limit	Continuous -10% of setting 15 sec duration -15% of setting	Continuous -10% of setting 15 sec duration -15% of setting
Over Voltage Limit	Continuous 5% of setting 15 sec duration 10% of setting	Continuous 5% of setting 15 sec duration 10% of setting
Energy Dissipation	2440J	3670J
Peak Current Surge	144,000A	84,000A
Max Surge Voltage	6,000V	6,000V
Clamp Level	330V	800V
DC Trigger Configuration	Tip Positive	Tip Positive
DC Trigger Voltage	5 – 15Vdc	5 – 15Vdc

PS Audio Power Plant 15 (second hand)

psaudio-powerplant-15

Rövid ismertető

33kg!
21,25cm magas! Hátoldalon 9 kimenet és 16A IEC bemenet
felső fedlap enyhén karcos
használt készülék első tulajdonostól, dobozával.
