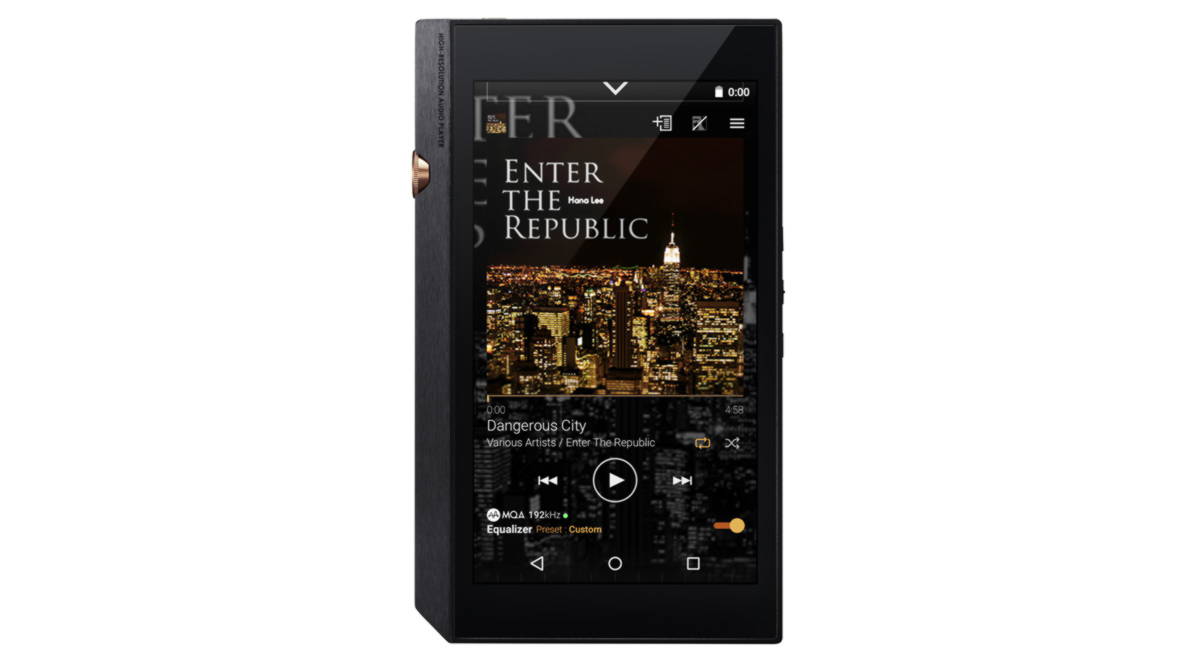

Pioneer XDP-300R Hordozható Média Lejátszó

• Twin ESS SABRE DAC “ES9018K2M”
• Dual Headphone AMP “SABRE 9601K”
• Playable Audio Format: MQA / DSD / DSF / DSD-IFF / FLAC / ALAC / WAV / AIFF / Ogg-Vorbis / MP3 / AAC
• Sampling rate and bits:
  – 11.2MHz/ 5.6MHz/ 2.8MHz / 1 bit
  – 44.1k/ 48k/ 88.2k/ 96k/ 176.4k/ 192k/ 352.8k/ 384k
  – 16bit/ 24bit (32bit float/integer can be played downconvert to 24 bit)
• Supported Playlist: M3U/ PLS/ WPL
• Output:
  – 75 mW + 75 mW (Unbalanced: 16 – 300 Ω)
  – 150 mW + 150 mW (Balanced: 32 – 600 Ω)
• Total Harmonic Distortion: Less than 0.006 %
• S/N Ratio: 115 dB over
• Frequency Response: 20 Hz ~ 80,000 Hz
• Gain: Low / Normal / High
• Two types of balanced drive via 2.5 mm (4 pole) output
  – BTL Drive, for increased power
  – „ACG“ (active control gnd), stability oriented, increased S/N ratio, larger spatial dimensionality and clean sound. Greater delineation for lower frequencies in Hi-Res Audio, overall strong and tight sound.
